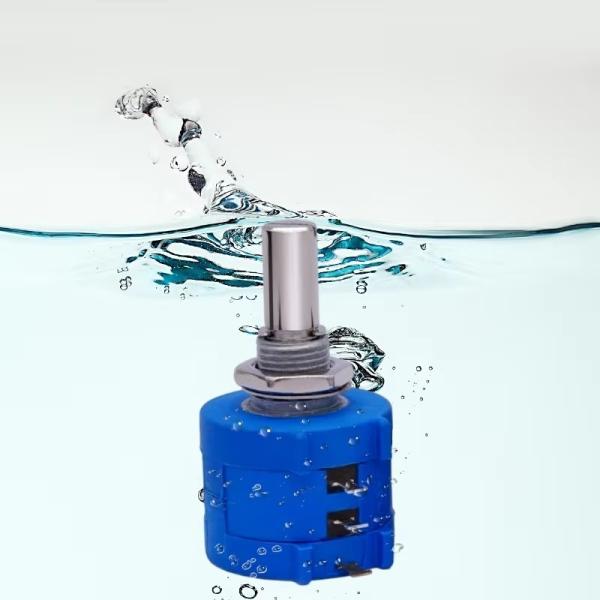

BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer

Brand Name : BONENS

Model Number : 3590S

Place of Origin : Sichuan, China

MOQ : 50

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : Delivery period ≤5000 14 days

Delivery Time : 5-8 working days

Packaging Details : Carton packaging

Waterproof grade : IP67

Contact Now

BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
3590 precision multi turn wire wound potentiometer 10K ohm
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
PRODUCT PACKAGING
25 pcs/board, 2 boards(50 pcs)/box,12boxs(600 pcs)large box
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
PRODUCT DESCRIPTION
Potentiometer type:Multi turn potentiometer
Potentiometer material:wire wound
model:3590S-2-103L
Resistance: 10K Ω
Permissible resistance range: ± 5%
Electrical rotation angle: 3600 ° ± 10 °(10 turn)
Rated power: 2W (70 ℃)
Temperature range: -55 ℃~+125 ℃
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
3590S wirewound potentiometer
Total mechanical stroke: 3600 ° ± 10 °(10 turn)
Shaft type:Circular shaft D shaft
shaft material: metal shaft
Shaft diameter: 6.3mm
shaft length:20mm
Resistance value variation mode: linear
Packaging: 25 pieces/board, 50 pieces/box,12 boxes/large box
Accessories: 3590S potentiometer matching nut and washer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
Product parameters
Characteristics
Range of nominal resistance
10K
Resistance tolerance
±5%
Terminal resistance
≤2%R or 5
Peak noise
≤100
Linear accuracy
±0.25%
Electrical angle
3600°±10°
Insulation resistance
≥ 200M
Withstand voltage
500V (DC or AC peak value)
Environment
Characteristics
Rated power
2W (70°C)
Temperature range
-55°C~ 125°C
TCR
±100x10-6/°C
Temperature shock
R≤±3%R
Collision (390m/S2, 4000 times)
R≤±1%R
Moisture proof (GJB306A-96-Method106, not for 7a,7b inapplicability)
R≤±3%R, Insulation Resistance≥100M
Vibration (10-500HZ, 0.75mm, 6h)
R≤±1%R, Electrical break≤100S
Climate category(IEC68-2-2)
R≤±3%R,Insulation Resistance≥100M, Starting Torque≤20mN.m
Operation at low temperature(-55°C, 4h)
R≤±3%R,Starting Torque≤20mN.m
Rotational life(10000cscles)
R≤±3%R,peak noise≤500,Starting Torque≤20mN.m
Electrical endurance (70°C, 2W, 1000h)
R≤±3%R
Steady damp heat (IEC68-2-3, Ca, 96h)
R≤±3%R, Insulation Resistance≥100M, Starting Torque≤20mN.m
Physical
Characteristics
Total mechanical travel
3600°±10°
Rotational torque
2~10mN.m
Stopper torque
≥300mN.m
Product size
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
BONENS Ip67 Rating Waterproof Potentiometer Precision Potentiometer 10k Precision Potentiometer
Q1: How can I place order?
A: You can contact us by email about your order details, or place order on line.
Q2: How can I pay you?
A: After you confirm our PI, we will request you to pay. T/Tand Paypal, Western Union are the most usual ways we are using.
Q3:What’s the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an Pl for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 7-15days if we don’t have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare
the shipment for you.
Q4: How do you take care when your clients received defective products?
A: Replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
Q5: How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
