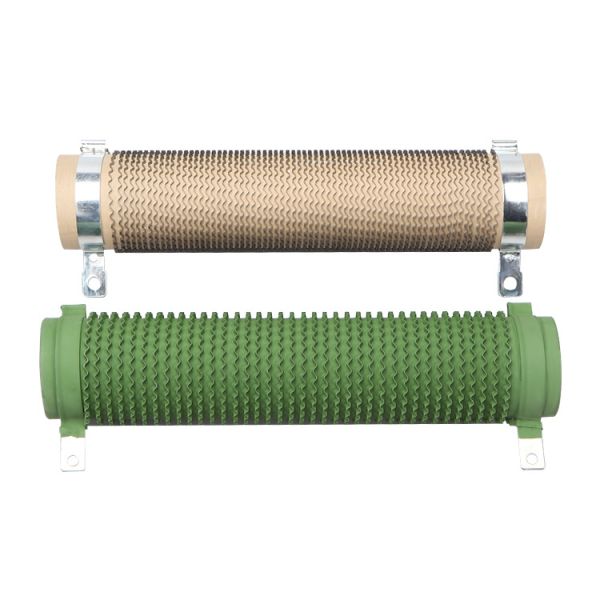

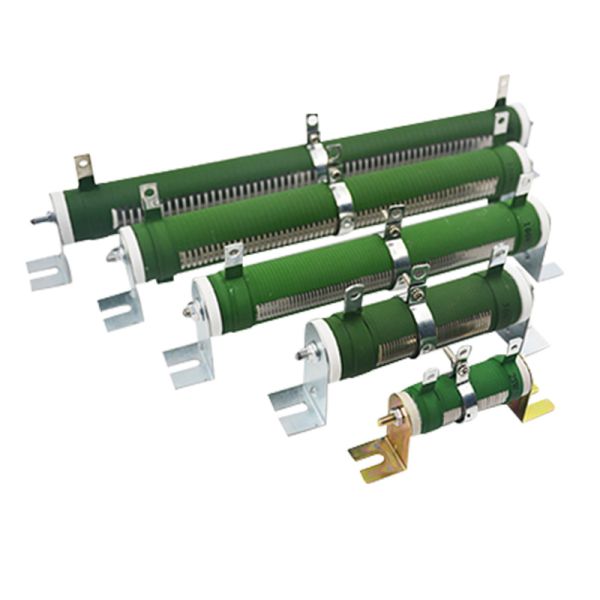

6000W High Power Ceramic Wirewound Braking Resistor Variable Resistance Industrial

Name: 6000W High Power Ceramic Wirewound Braking Resistor Variable Resistance Industrial
Brand: BONENS
Price: 1 USD

Buy cheap 6000W High Power Ceramic Wirewound Braking Resistor Variable Resistance Industrial product

Rated Power : 10W~20000W

Resistance : Variable

Application : Industrial braking

Place of Origin : Sichuan, China

Brand Name : BONENS

Model Number : RX20

MOQ : 1

Resistance Tolerance : ±5%

Temperature Coefficient : ±200PPM/°C

Resistance Range : 0R22~43K

Operating Temperature : -55°C ~ +275°C

Mounting Type : Through Hole

Lead Length : 20mm

Case Size : 7.5mm x 10mm

Material : Wirewound

Device Type : RX20 Wirewound Resistor

Power 40W Dimensions : 20*90mm

Power 50W Dimensions : 28*90mm

Power 80W Dimensions : 28*140mm

Power 200W Dimensions : 28*267mm

Power 300W Dimensions : 40*265mm

Type : Wirewound

Contact Now

High-power Ceramic Resistors 6000W Wirewound Braking Resistor

Product Description

6000W High Power Ceramic Wirewound Braking Resistor Variable Resistance Industrial

The RX20 wirewound resistor is a premium device manufactured by Yageo, delivering highly reliable performance for diverse applications. This component features a compact 7.5mm x 10mm case size and is designed for straightforward circuit board soldering with 20mm lead length. Utilizing through-hole mounting technology, the RX20 resistor ensures easy installation and maintenance. With its superior performance characteristics and robust construction, the RX20 device represents an excellent choice for demanding electronic applications.

Product Features

Specification Parameters

Parameter	Description
Device	RX20 Wirewound Resistor
Material	Wirewound
Operating Temperature	-55°C ~ +275°C
Resistance Tolerance	±5%
Temperature Coefficient	±200PPM/°C
Resistance	0R22~43K
Rated Power	10W~20000W

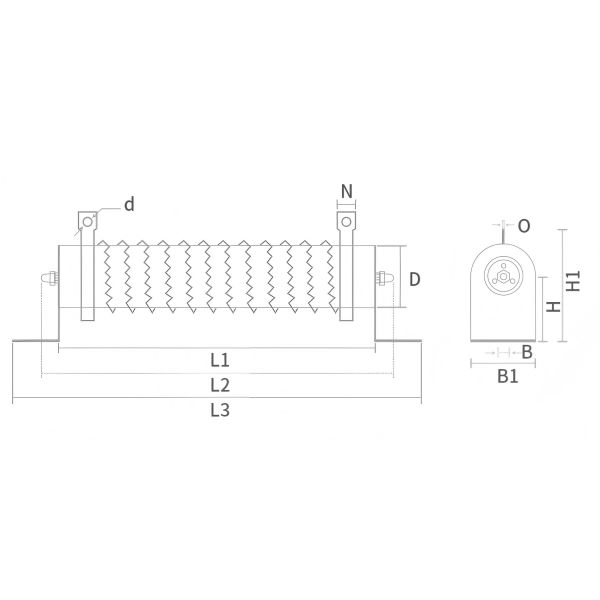

Product Dimensions

Power	Style	L1 (±2)	L2 (±2)	L3 (±2)	D (±2)	B	B1	H (±3)	H1
40W	20*90	90	127	103	20	4.3	20	24	47
50W	28*90	90	143	115	28	6	28	32	66
80W	28*140	140	193	165	28	6	28	32	66
100W	28*167	167	220	192	28	6	28	32	66
150W	28*215	215	268	240	28	6	28	32	66
200W	28*267	267	320	292	28	6	28	32	66
300W	40*265	265	309	284	40	9	40	40	82
400W	40*282	282	326	302	40	9	40	40	85
500W	40*330	330	370	349	40	9	40	40	85
600W	50*330	330	370	347	50	7	50	41	97
800W	60*330	330	379	344	60	8	60	58	119
1KW	60*400	400	450	415	60	8	60	58	122
1.2KW	60*430	430	480	452	60	8	60	58	122
1.5KW	70*430	430	495	462	70	8	70	67	132
2.5KW	80*430	430	490	455	80	8.5	80	70	150
3KW	90*430	430	490	455	90	9	90	76	150
3.5KW	100*430	430	510	473	100	9.5	100	75	157

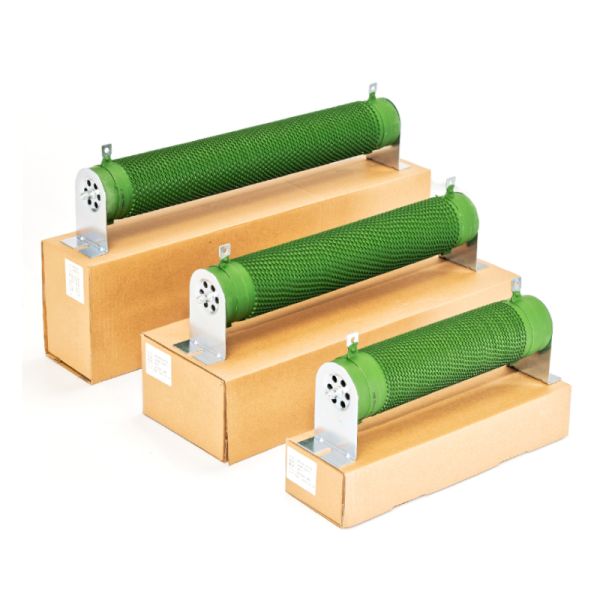

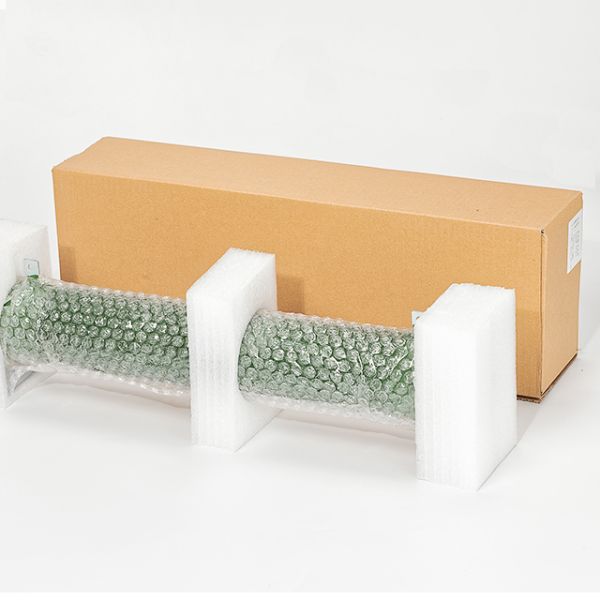

Packaging & Transportation

More Products

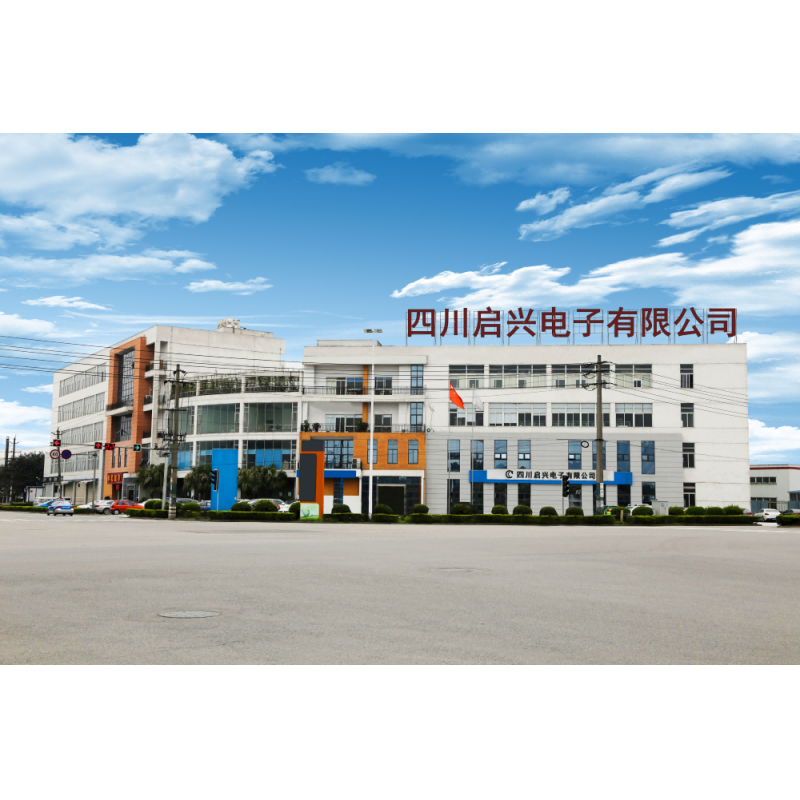

Company Presentation

Sichuan Qixing Electronics Co., Ltd, established in 2005, is a professional electronic component enterprise integrating research and development, production, and sales. Our company headquarters is located in Chengdu city, Sichuan Province. We boast many years of industry experience and profound technical expertise. Our main products include potentiometers, resistors, knobs, power filters, band switches, capacitors, and more. These products are widely used in various fields such as instrumentation, power equipment, communication equipment, household appliances, electric power equipment, aerospace, and more.

Our company has obtained ISO9001-2000 quality management system certification and has also been honored with the title of "High-tech Enterprise," which is a full recognition of our technological innovation capabilities and R&D strength. At the same time, our "BONENS" trademark brand has also won a good reputation and wide recognition in the market, with products exported to various parts of the world. We always adhere to the quality policy of "technological innovation, pursuit of excellence, continuous improvement, and customer satisfaction."

Looking forward to the future, Sichuan Qixing Electronics Co., Ltd will continue to uphold the enterprise spirit of integrity, pragmatism, and innovation, constantly forge ahead, and create greater glory for our tomorrow!
