2000W High Power Ceramic Resistor 8 Ohm Resistance Ceramic Composition Fixed Wirewound

Name: 2000W High Power Ceramic Resistor 8 Ohm Resistance Ceramic Composition Fixed Wirewound
Brand: BONENS
Price: 1 USD

Buy cheap 2000W High Power Ceramic Resistor 8 Ohm Resistance Ceramic Composition Fixed Wirewound product

Rated Power : 2000 watt

Resistance : 1Ω-10kΩ

Type : Fixed Resistor

Application : Industrial braking

Place of Origin : Sichuan, China

Brand Name : BONENS

Model Number : Ceramic 2000W 8ohm

MOQ : 1

Resistance Tolerance : ±5%

Technology : Ceramic Composition

Package Type : Through Hole

Temperature Coefficient : ±250PPm

Dimensions D : 60±2 mm

Dimensions L1 : 510±2 mm

Dimensions L2 : 540±5 mm

Dimensions L3 : 560±3 mm

Dimensions N : 16±1 mm

Dimensions Φ : 6±1 mm

Reference Weight : 2.3 kg

Resistance Accuracy : ±5%

TCR : ±250ppm/°C

Contact Now

High Power 8 Ohm Ceramic Resistor 2000W

2000W High Power Ceramic Resistor 8 Ohm Resistance Ceramic Composition Fixed Wirewound

Product Features

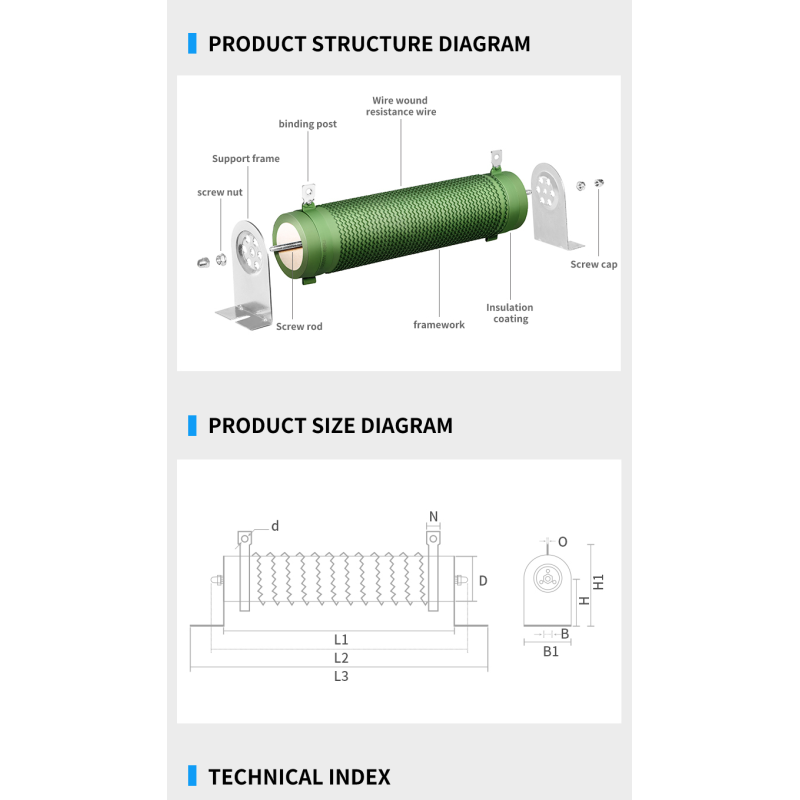

Product Specifications & Dimensions

Rated Power (W)	D±2 (mm)	L1±2 (mm)	L2±5 (mm)	L3±3 (mm)	N±1 (mm)	Φ±1 (mm)	Reference Weight (kg)	Resistance Accuracy	Temperature Coefficient
10W	14	40	/	/	5	3	0.02	±5%	±250ppm
15W	14	45	/	/	5	3	0.02
20W	16	50	85	100	6	3	0.05
25W	20	50	85	100	6	3	0.05
30W	20	70	105	120	6	3	0.06
40W	20	90	125	140	6	3	0.08
50W	28	90	130	150	9	4	0.1
75W	28	140	180	200	9	4	0.15
100W	28	170	210	230	9	4	0.18
150W	28	215	250	270	9	4	0.22
200W	28	267	300	320	9	4	0.23
250W	28	267	300	320	9	4	0.32
300W	40	267	287	307	12	6	0.32
400W	40	300	320	240	12	6	0.36
500W	50	300	320	340	14	6	0.55
600W	50	300	320	340	14	6	0.95
800W	60	300	330	335	16	6	1
1000W	70	300	330	335	16	6	1.2
1200W	70	360	390	415	16	6	1.6
1500W	70	420	450	470	16	6	2
2000W	60	510	540	560	16	6	2.3
2500W	70	510	540	560	16	6	2.7
3000W	80	430	470	500	16	6	3
4000W	100	400	440	465	16	7	3.5
5000W	100	500	540	560	16	7	4.5
6000W	100	600	640	660	16	7	5.8
8000W	150	600	690	740	25	15	18
9000W	150	600	690	740	25	15	18
10KW	150	600	690	740	25	15	18

RX20/RXG20 Load Resistor & Braking Resistor

High-power corrugated wire-wound resistor suitable for braking, load, inverter discharge, and aging load applications. Available resistance values from 0.1Ω to 10kΩ.

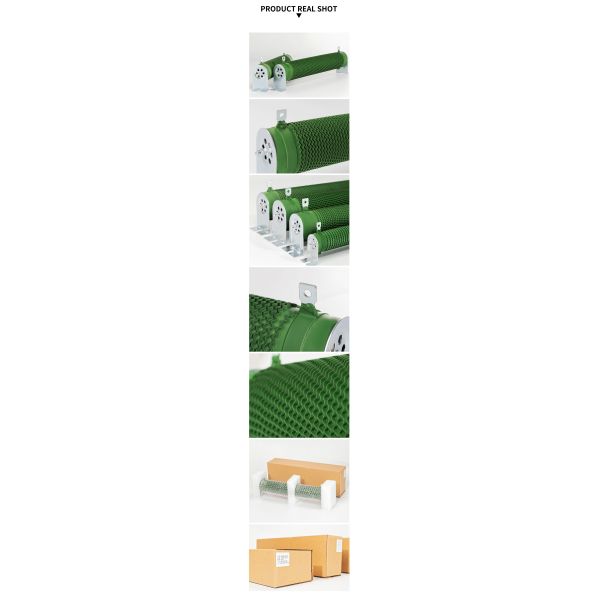

Product Gallery

Product Packaging

Key Features

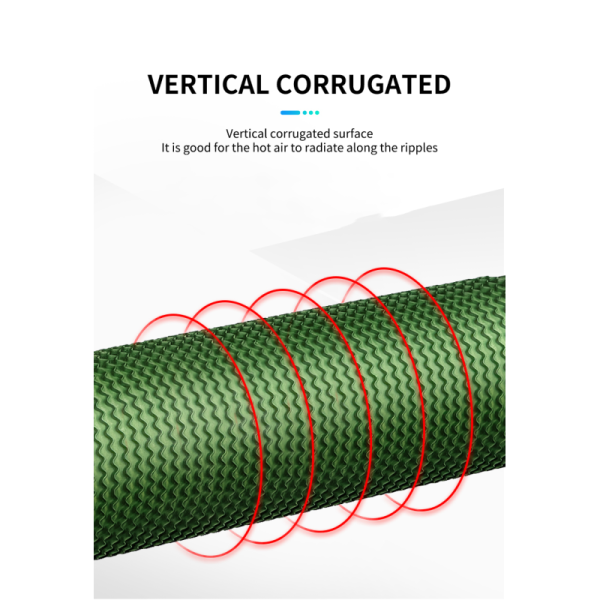

Resistance surface is painted with wide power range capability
Excellent high temperature load performance
Full welded structure for enhanced durability
High reliability and long service life

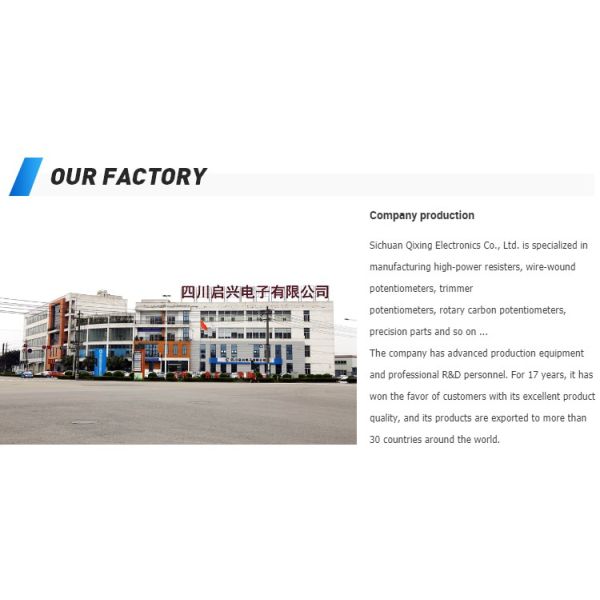

Company Profile

Product Tags:

2000W 8 Ohm Rating

Ceramic Composition Body

Industrial Braking Use
