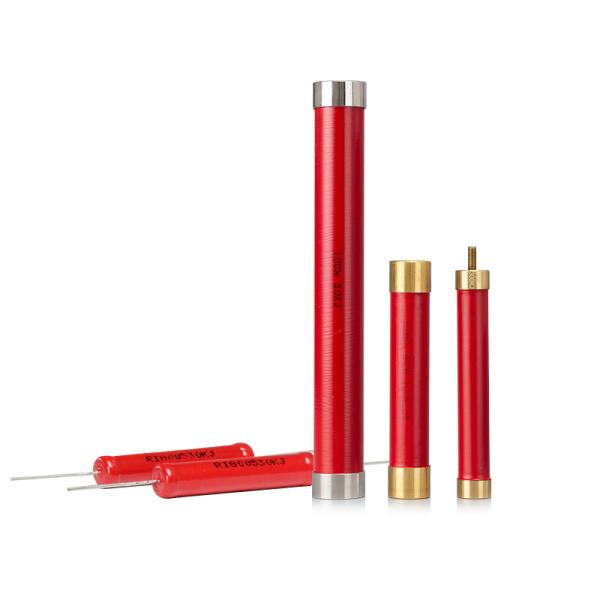

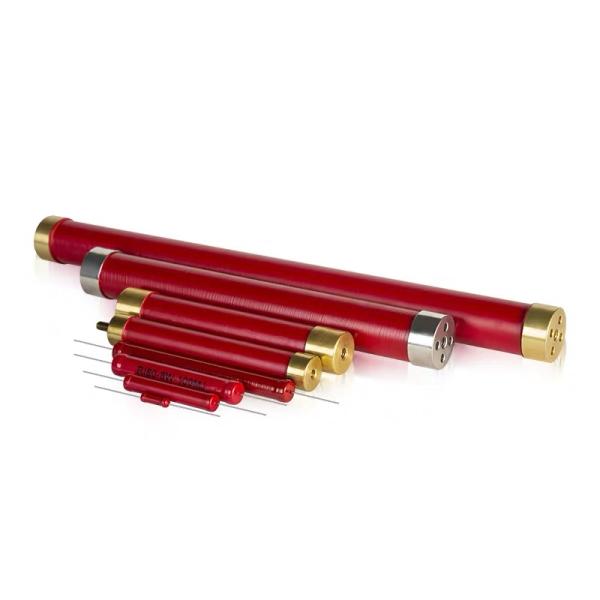

RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze

Place of Origin : Sichuan, China

Brand Name : Bonens

Model Number : RI80-5W-5MR

MOQ : 100

Resistance : 10 to 100k ohm

Resistance Tolerance : ±5%

Type : Non-inductive glass glaze

Composition : Ceramic

Temperature Coefficient : 200ppm

Number of Pins : 2

Power Rating : 5W

Inductance : Non-inductive

Coating : Glass glaze

Voltage Type : High Voltage

Rapid Temp Change : ΔR≤ ± (1% R + 0.05Ω)

Climatic Sequence : ΔR≤ ± (5% R + 0.1Ω)

Terminal Strength : ΔR≤ ± (1% R + 0.05Ω)

Solder Heat Resistance : ΔR≤ ± (1% R + 0.05Ω)

Overload Capacity : 2.5x rated power

Power : 5W

Application : High frequency

Contact Now

RI80 5W High Frequency Non-inductive Glass Glaze High Voltage Resistor
RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze

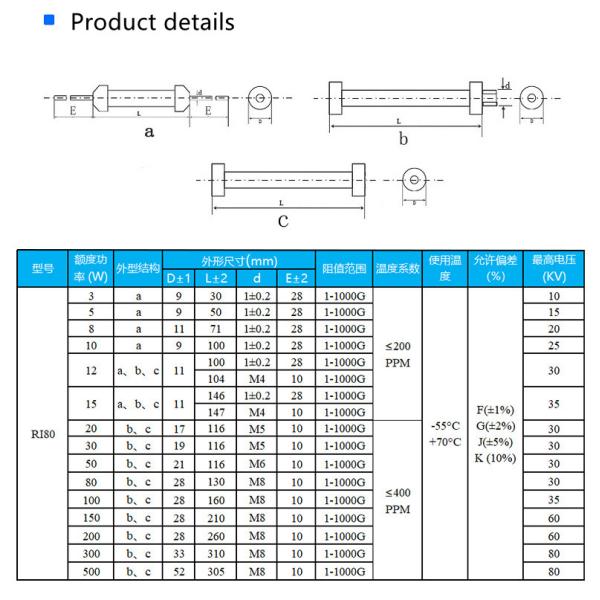

Technical Specifications
Test items Testing method Performance requirements
Rapid changes in temperature Lower category temperature - room temperature - upper category temperature - room temperature, 5 cycles each limit temperature is kept 30min ΔR≤ ± (1% R + 0.05Ω)
Climatic sequence Dry heat - Damp heat, cyclic - cold - Low pressure - cycle heat - DC load DC voltage is applied Length 1min ΔR≤ ± (5% R + 0.1Ω)
Terminal Strength Rally test ΔR≤ ± (1% R + 0.05Ω)
Resistance to soldering heat Groove welding method, the bath temperature: 350 ± 10 ℃ time: 3.5 ± 0.5s Immersion depth: 2 ± 0.5mm ΔR≤ ± (1% R + 0.05Ω)
Overload Applying a 2.5 or 2 times the rated power load 5s ΔR≤ ± (1% R + 0.05Ω)
Steady heat Applying a DC voltage (limit voltage of the rated voltage or elements) Length 1min ΔR≤ ± (5% R + 0.1Ω)
Upper category temperature durability Resistor on the upper category temperature specified duration 1000h ΔR≤ ± (5% R + 0.1Ω)
Packaging & Delivery
RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze

To ensure the safety of your goods, we provide professional, environmentally friendly, convenient and efficient packaging services.

Company Profile
RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze RI80 5W High Voltage Resistor 10 to 100k Ohm 5 Percent Tolerance Non-Inductive Glass Glaze

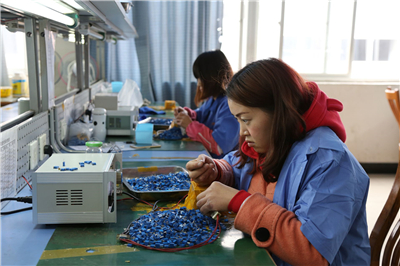

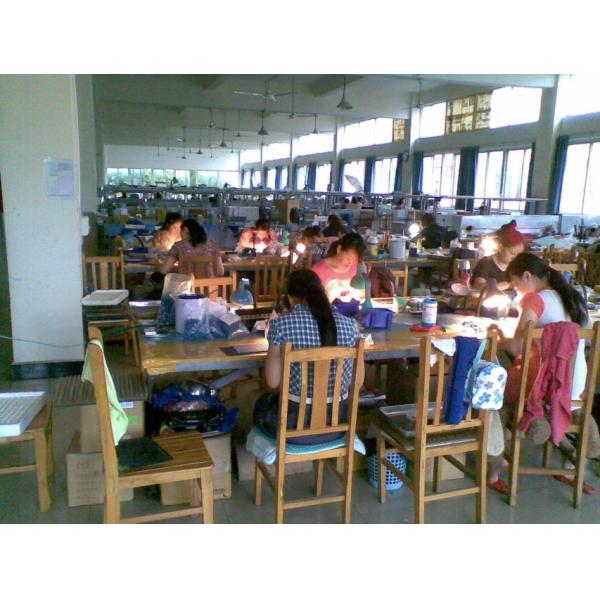

Sichuan Qixing Electronics Co., Ltd. specializes in manufacturing high-power resistors, wire-wound potentiometers, trimmer potentiometers, rotary carbon potentiometers, and precision parts. With years of experience in both civil and defense industrial products, we strictly enforce ISO9001 and ISO2000 quality control systems.

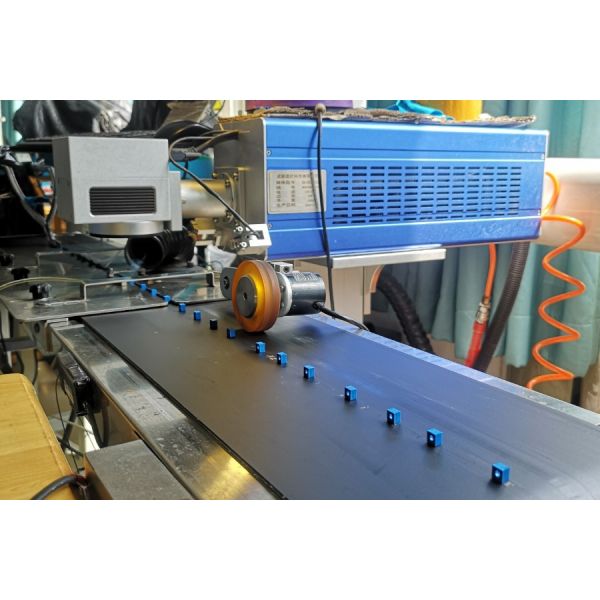

Our products are widely used in electronic communication products, instrument measuring appliances, cable TV equipment, electrician products, and audio/video products. We maintain our industry leadership through continuous product development and by operating advanced ceramic resistance element production lines with high temperature polymerization furnaces imported from the USA.

With 500 employees including 56 professionals (35 with over 10 years' experience), we provide comprehensive services including product design, OEM solutions, and excellent after-sales support. Our quality policy is "Technical innovation, striving for perfection, keeping on improving, continuously satisfying customers."

Frequently Asked Questions
Who are we?

We are based in Sichuan, China, established in 2005. Our primary markets include Domestic Market (70%), Western Europe (8%), North America (5%), and other global regions. Our company employs 51-100 professionals.

How can we guarantee quality?

We implement strict quality control measures including pre-production samples and final inspection before shipment.

What can you buy from us?

Our product range includes potentiometers, resistors, EMI filters, knobs, and switches.

Why should you buy from us?

As a professional manufacturer since 2005, we ensure high quality products with competitive pricing and excellent service.

What services can we provide?

We accept various delivery terms (FOB, CFR, CIF, EXW, FCA) and payment methods (T/T, L/C, MoneyGram, Western Union, Cash). Our team communicates in both English and Chinese.
