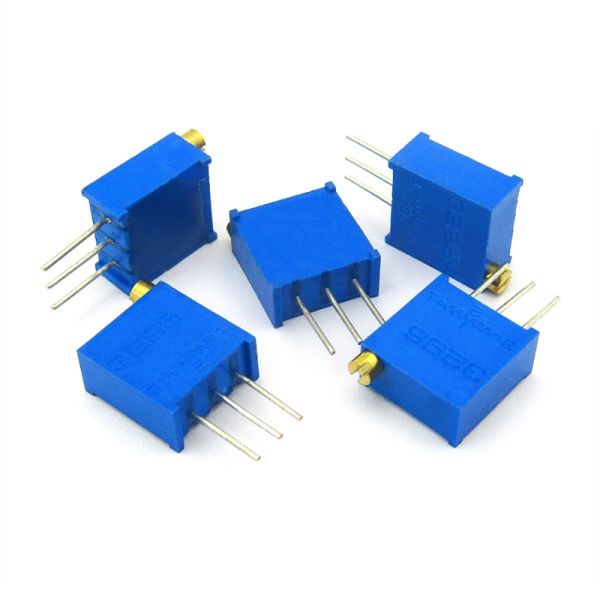

3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
  • 9
  • 10
  • 11
  • 12
  • 13
  • 14
  • 15
  • 16
  • 17
  • 18
  • 19
  • 20
  • 21
  • 22
  • 23
  • 24
  • 25
  • 26
  • 27
  • 28
  • 29
  • 30
  • 31
  • 32
  • 33
  • 34
  • 35
  • 36
  • 37
  • 38
  • 39
  • 40
  • 41
  • 42
  • 43
  • 44
  • 45
  • 46
  • 47
  • 48
  • 49
  • 50
  • 51
  • 52
  • 53
  • 54

Brand Name : Bonens

Product name : Potentiomete

Place of Origin : china

Termination : PC Pin

Temperature Range : -55°C to +125°C

Technology : Cermet

Resistance Range : 10 ohm to 5M

Resistance : 10Ω~5MΩ

Max. Operating Voltage : 500V

Model Number : 3296Z

Resistance Tolerance : ±10%

Withstand Voltage : 640V DC AC

MOQ : 100

Rated Power : 0.25W, 300V max

Operating Temperature : -55℃~+125℃

Advantage : 16 Years

Price : $0.05-0.10

TCR : ±250ppm/°C

Application : Circuit calibration, equipment

Description : Potentiomete

Quality : High Quanlity

Contact Now

3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
Product Description

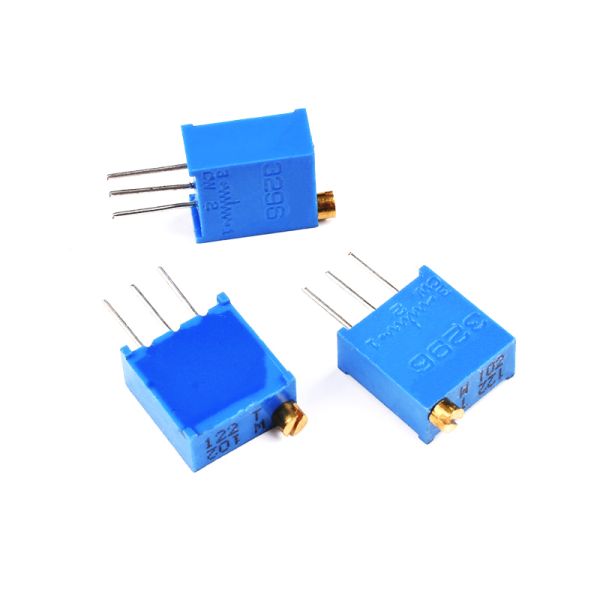

3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision

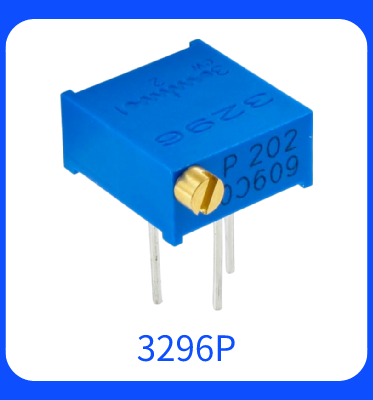

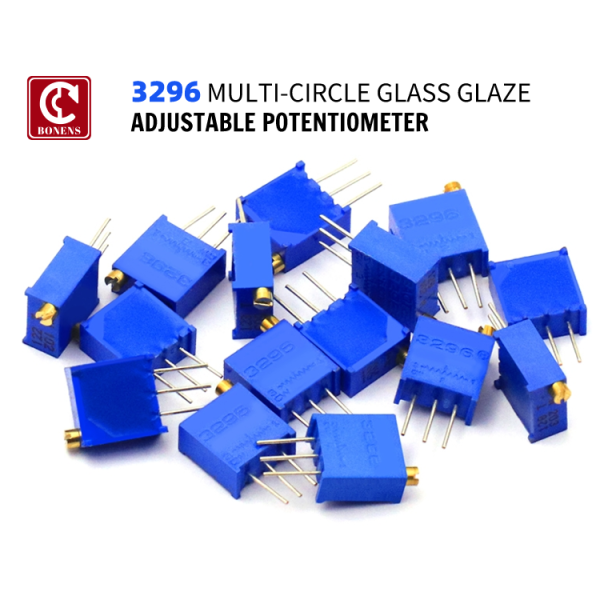

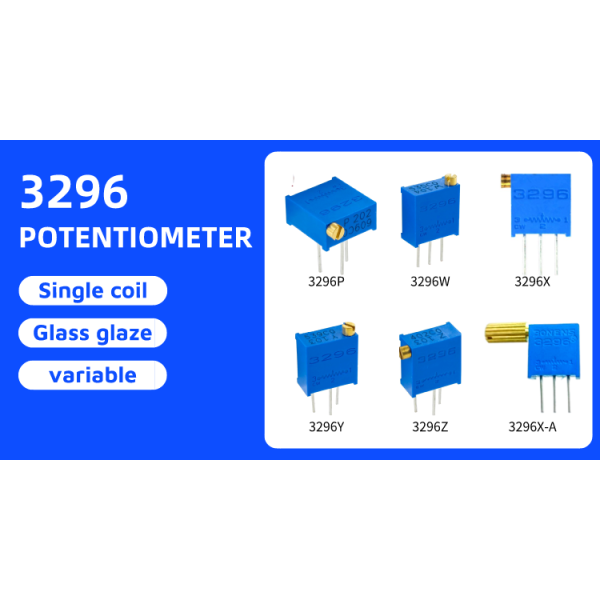

3296 multi-coil glass glaze adjustable potentiometer

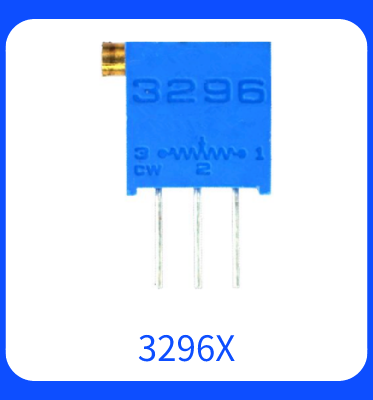

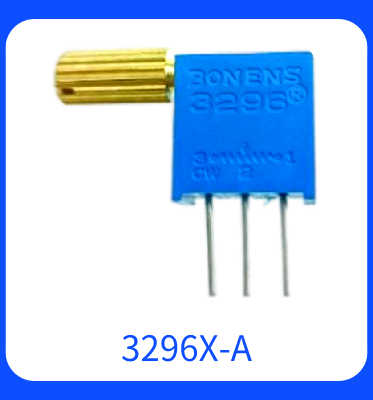

3296 multi-coil glass glaze adjustable potentiometer, 3296 has 6 models, 3296W,3296Y,3296X,3296Z,3296P,3296X-A,3296W-B stance value is 100R 200R 500R 1K 2K 5K 10K 20K 50K 100K 200K 250K 500K 1M 2M.
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
Specification
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision




Electrical Characteristics
Range of nominal resistance
10Ω~5MΩ
Resistance tolerance
±10%
Terminal resistance
≤±1%R or 2Ω
Contact resistance variation (CRV)
≤±1%R or 3Ω
Insulation resistance
≥ 1GΩ (100V AC)
Withstand voltage
640V (DC or AC peak value)
Effective electrical travel
≥70% of mechanical travel








Environment Characteristics
Rated power
0.25W ( 300V max)
Temperature range
-55°C~+125°C
TCR
±250×10-6/°C
Collision (390m/S2, 4000 times)
ΔR≤±1%R
Vibration (10-500HZ, 0.75mm, 6h)
ΔR≤±1%R, ΔUab/Uac≤±2%R, Electrical break≤100μS
Temperature variation (-55°C/30min, +125°C/30min, 5 cycles)
ΔR≤±2%R, ΔUab/Uac≤±2%R
Climate category (IEC68-2-2)
ΔR≤± (5%R+0.1Ω),Insulation Resistance≥100MΩ
Electrical endurance (0.5W, 1000h)
ΔR≤± (5%R+0.1Ω),CRV≤±3%R or 5Ω
Mechanical endurance (200 cycles)
ΔR≤± (10%R+0.5Ω), CRV≤±3%R or 5Ω
Steady damp heat (IEC68-2-3, Ca, 96h)
ΔR≤± (5%R+0.1Ω), Insulation Resistance≥100MΩ


Physical Characteristics
Total mechanical travel
12±2 lap
Starting torque
≤25mN.m
Standard package
50 pcs /tube(3296W,3296Y)
40 pcs/tube(3296X,3296Z,3296P

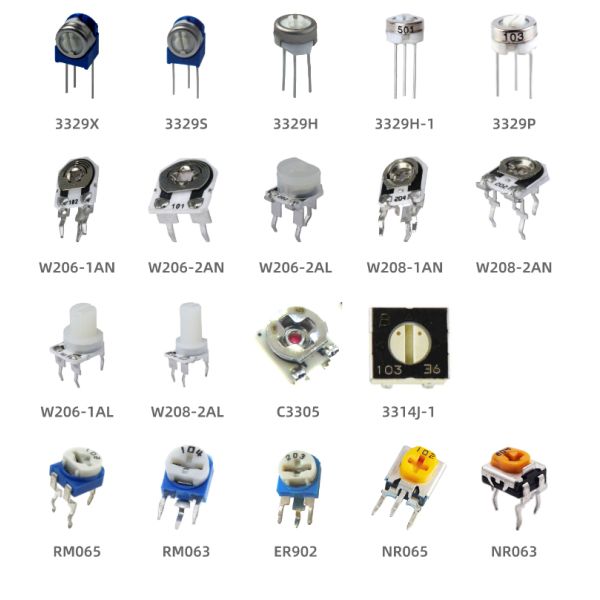

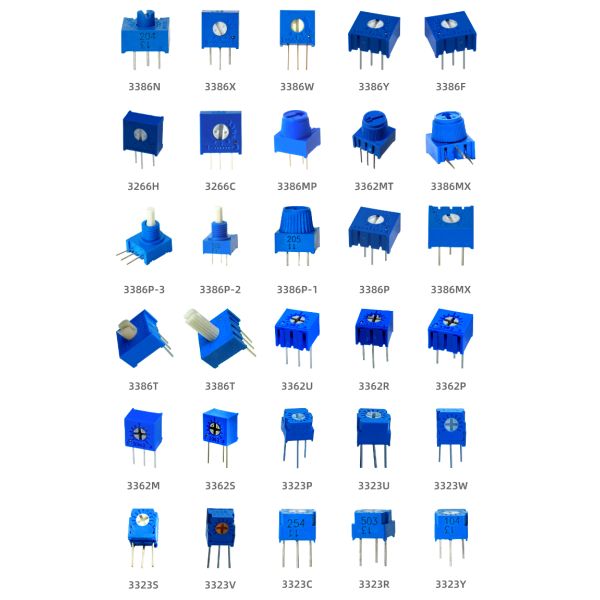

Product catalog
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision

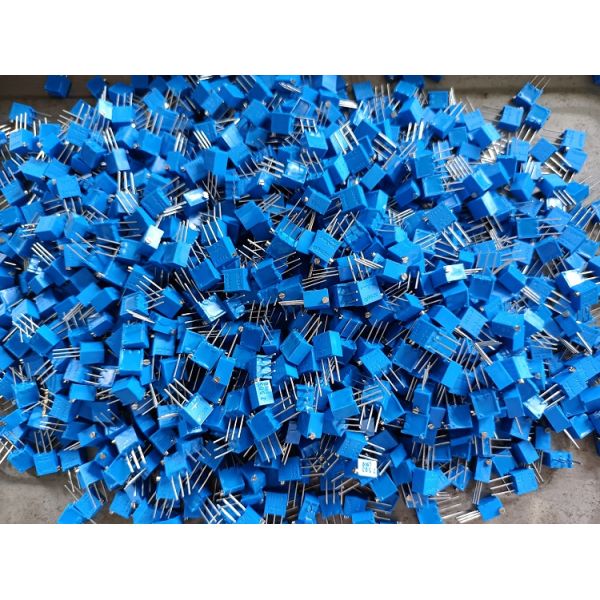

Packing & Delivery
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision

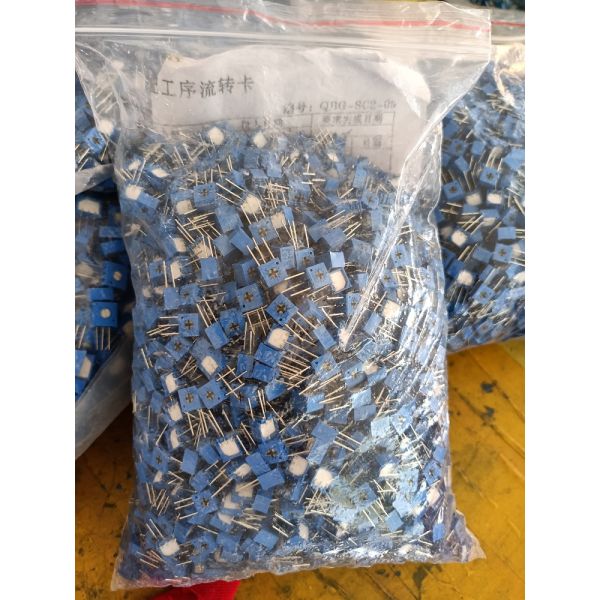

PACKAGING
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
The shipping options for our products are EMS, TNT, DHL, UPS,FedEx...
can ensure that your products reach you safely and efficiently
Company Profile
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision

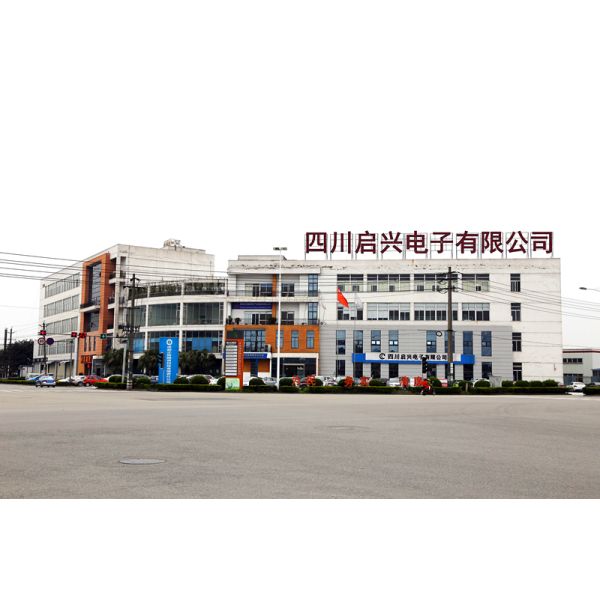

Company production
Sichuan Qixing Electronics Co., Ltd. is specialized in manufacturing high-power resisters, wire-wound potentiometers, trimmer
potentiometers, rotary carbon potentiometers, precision parts and so on ... The company has advanced production equipment and
professional R&D personnel. For 17 years, it has won the favor of customers with its excellent product quality, and its products
are exported to more than 30 countries around the world.
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
FAQ
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
1. Are you a factory or a trading company?
We are a factory. The price we give you is the factory price. There is no middleman to make the difference. We not only provide
high-quality products, but also provide you with professional technical personnel for one-to-one technical explanation and
consultation, or according to your needs. Customized processing, can accept OEM&ODM orders.

2. Can you provide samples?
Samples of our products are available. If you need to provide samples, you need to contact our customer service staff. After
placing the order, we will mail the samples to you. We will refund the sample fee when you place the second order and reach the
specified amount or quantity. .

3. Can your products be customized?
Our products can accept OEM orders and ODM orders. Different products have different customization requirements. The customized
quantity and order amount are different. Please contact our customer service staff for details.
We have advanced production equipment that can guarantee excellent product quality and sufficient output.
With an excellent R&D team, we can accept orders for products with special and complex processes.

4. How soon can your products bedelivered and shipped?
With multiple factories, multiple orders can be produced at the same time.
With 17 years of production experience, we can provide you with high-quality after-sales service and professional technical
training.
The delivery time of the product is different according to the number of products, production process, product model, order
quantity, etc., and the delivery time will be different. Our products are queued for delivery according to the order. If your
product needs to be expedited, please contact the customer service staff for consultation .

5. Do your products provide after-sales service?
The products we sell have after-sales service. If the product has after-sales problems, please contact our customer service staff
as soon as possible. We will actively handle the after-sales service for you. We provide 24-hour after-sales service.

6. Which order conditions do you accept?
Accepted delivery terms: FOB, CFR, CIF, EXW, FCA;
Accepted payment currencies: U.S. dollars, euros, renminbi;
Accepted payment types: T/T, L/C, MoneyGram, Western Union, cash;
3296Z Cermet Trimmer Potentiometer 10 Ohm Top Adjustment Variable Resistor Multi Turn Precision
